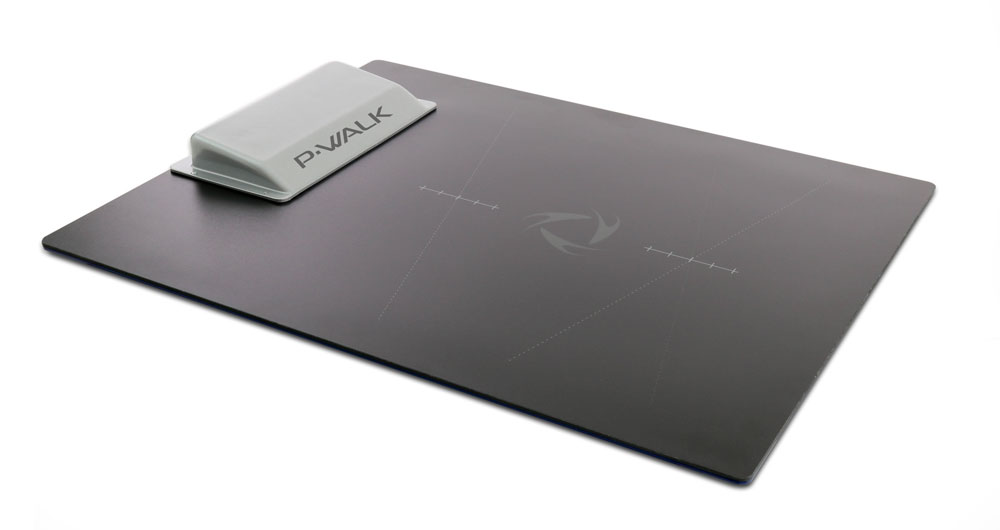

P-WALK plate
P-WALK logo

Modular platforms system for plantar pressure measurement

P-WALK is a modular system composed by one or more platforms able to measure plantar pressure in static and dynamic phases. P-WALK supplies quantitative information on plantar support through the calculation of parameters such as surface, maximum pressure, average pressure and center of pressure.
This test helps diagnose the existence of postural and walking alterations, to observe the benefit from the use of insoles and prostheses and to assess the effects of pharmacological treatments.

P-WALK posture and muscles

Static analysis

The patient stands still for a few seconds, in the center of the platform while the system measures pressure distribution, contact surface and COP oscillations.
This data allows us to accurately evaluate the ground contact and balance variations in the static position.

P-WALK feet
P-WALK software report
P-WALK report

Only

0

mm

of thickness

More than

0

sensors

for each plate

Up to

0

connectable

plates

P-WALK gait analysis
P-WALK Dynamic Report
P-WALK dynamic report

Dynamic analysis

The test consists in having the patient walk back and forth on the platform. On the 2 or 4 platforms configuration, the patient can perform a series of strides in a single path. P-WALK processes the collected data and displays the sequence of forces expressed on the vertical plane, pressure, COPs, contact surface and speed, at each step.
Stride data can be observed frame by frame in a video track.

A precious tool for prevention, diagnostics and follow-up

P-WALK is the system used by physicians, dentists, physiotherapists, osteopaths and orthopedic technicians for:

  • Evaluation and prevention of postural and gait alterations
  • Prescription of supports such as orthotics, insoles, etc.
  • Parkinson’s disease or diabetic foot assessment
  • Prevention of fall risk in elderly subjects
P-WALK orthesys
wdt_ID Single PlateMultiple Plate
1 Available Configurations Single Plate (non-upgradable) Single Module (upgradable), 1m Plate, 2m Plate
2 Dimensions 675x540x5mm (sensorized surface h 0,7mm) Minimum (single module) 685x480x5mm Maximum 685x1920x5mm (sensorized surface h 0,7mm)
3 Area active 480x480mm 500/4000x480mm
4 Sensor dimension 1cmx1cm 1cmx1cm
5 Number of sensors 2304 2304 per module
6 Sensor type Resistive Resistive
7 Acquisition frequency Up to 100Hz Up to 50Hz
8 Pressure range 30-400 Kpa 30-400 Kpa
9 Power supply via USB Dedicated AC adapter
10 Connectivity USB 2 USB 2


wdt_ID
1 Static Analysis (stabilometry)
2 Dynamic Analysis
3 Gait Analysis (requires 2 or 4 module system)
